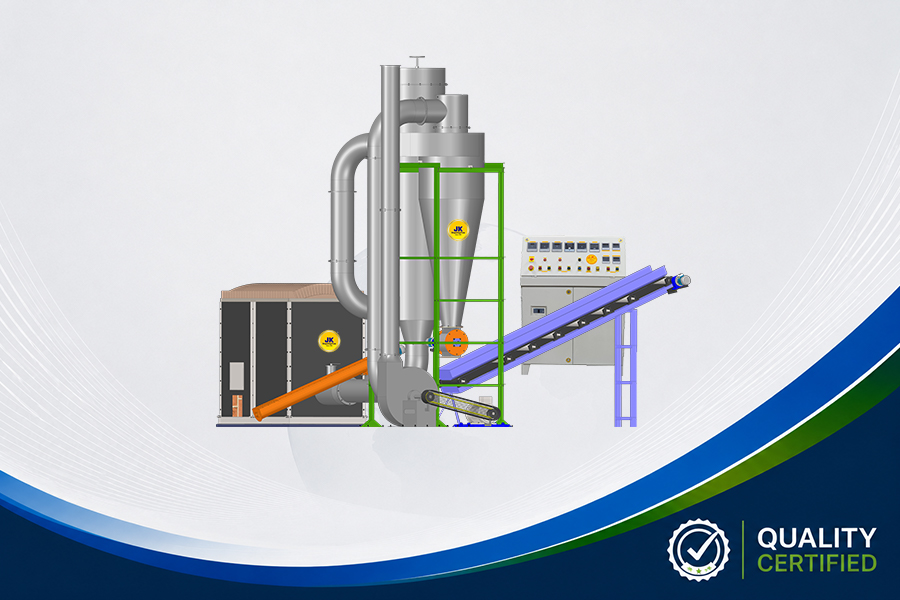

Biomass Dryer System Manufacturer India
Our Biomass Drying System is a high-efficiency industrial drying solution designed to reduce the moisture content of biomass materials for briquetting, pelletizing, biomass power plants, and other industrial applications. Using advanced Turbo Drying Technology, the system delivers fast, uniform, and energy-efficient drying with low operating costs.
Wet biomass is fed through a Screw Conveyor into a Drying Pipeline, where it is mixed with hot air generated by a Hot Air Furnace. An ID Fan carries the material through the pipeline, rapidly removing moisture. The dried biomass is then separated and collected by a Cyclone Separator.
The system is suitable for drying sawdust, wood chips, wood powder, rice husk, bagasse, groundnut shells, cotton stalks, agricultural waste, forestry waste, municipal solid waste (MSW), corn cobs, and other biomass residues.
Our Biomass Drying System efficiently reduces input moisture up to 30–40% to an ideal output moisture of 8–15%, ensuring optimum performance for briquetting and pellet production.
Technical Specifications
Advantages of Biomass Dryer
The Biomass Dryer System uses a Hot Air Furnace, Screw Conveyor, ID Fan, Drying Pipeline, and Cyclone Separator to reduce the moisture content of Wet biomass such as sawdust, wood granding powders, agricultural waste,. The material is conveyed into the drying pipeline, where hot air rapidly removes moisture. The dried biomass is then separated in the cyclone and discharged with the ideal moisture content, ready for briquetting, pelletizing, and other industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Type | Biomass Dryer System |
| Drying Technology | Turbo Dryer (Model Dependent) |
| Drying Method | Hot Air Drying with Controlled Airflow |
| Input Raw Material | Any agriculture waste, any wood grinding powder |
| Input Material Size | Diameter up to 3 mm and length up to 10 mm |
| Suitable Moisture Content (Input) | Up to 35% (depending on raw material) |
| Output Moisture Content | 8–15% (adjustable based on application) |
| Heating Source | Biomass Furnace / Hot Air Generator |
| Feeding System | Belt Conveyor or Screw Conveyor |
| Discharge System | Cyclone Separator with Airlock / Screw Conveyor |
| Airflow System | High-Efficiency Centrifugal Blower |
| Fuel Type | Biomass Briquettes, Wood Waste, Wood Logs, or Other Biomass Fuels |
| Construction | Heavy-Duty Mild Steel Fabrication |
| Insulation | High-Temperature Thermal Insulation |
| Control Panel | PLC / Standard Electrical Control Panel (Optional) |
| Operation | Continuous Industrial Operation (24×7) |
| Maintenance | Low Maintenance with Easy Access to Components |
| Applications | Briquetting Plants, Pellet Plants, Biomass Power Plants, Industrial Fuel Preparation |
Raw Materials
At Jay Khodiyar Machine Tools, the Biomass Drying System uses a screw conveyor, pneumatic conveying line, Hot Air Furnace, and cyclone separator to ensure fast, uniform, and energy-efficient drying. It is suitable for processing sawdust, wood chips, wood powder, rice husk, bagasse, bamboo dust, groundnut shells, cotton stalks, agricultural waste, forestry waste, municipal solid waste, and other biomass materials.
Dryer Working Process
- Raw Material Feeding: Wet biomass is fed into the dryer through a feeding hopper or screw conveyor.
- Material Conveying: The screw conveyor continuously transfers the material into the drying chamber.
- Hot Air Drying: A hot air furnace generates high-temperature air, which rapidly removes moisture from the biomass.
- Cyclone Separation: The dried biomass is separated from the hot air and collected for further processing.
- Dust Collection: Fine dust is captured by the air pollution control system before clean air is released.
- Ready for Production: The dried biomass is ready for briquetting, pelletizing, biomass boilers, and other industrial applications.
This process ensures fast, uniform, and energy-efficient drying, delivering biomass with the ideal moisture content for high-performance fuel production.
Standard Models (Typical)
| Model | Power | Capacity | Input Moisture | Output Moisture |
|---|---|---|---|---|
| JK-BD-2000 | 61 HP | 2 TPH | Up to 40% | 8–15% |
| JK-BD-3000 | 73 HP | 3 TPH | Up to 40% | 8–15% |
| JK-BD-5000 | 90 HP | 4 TPH | Up to 40% | 8–15% |
Note: Drying capacity depends on the raw material type, initial moisture content, particle size, ambient conditions, heating source, and dryer configuration. Custom biomass drying systems are available to meet specific production capacities and process requirements.
