BiomassBriquetting Plant Manufacturer India

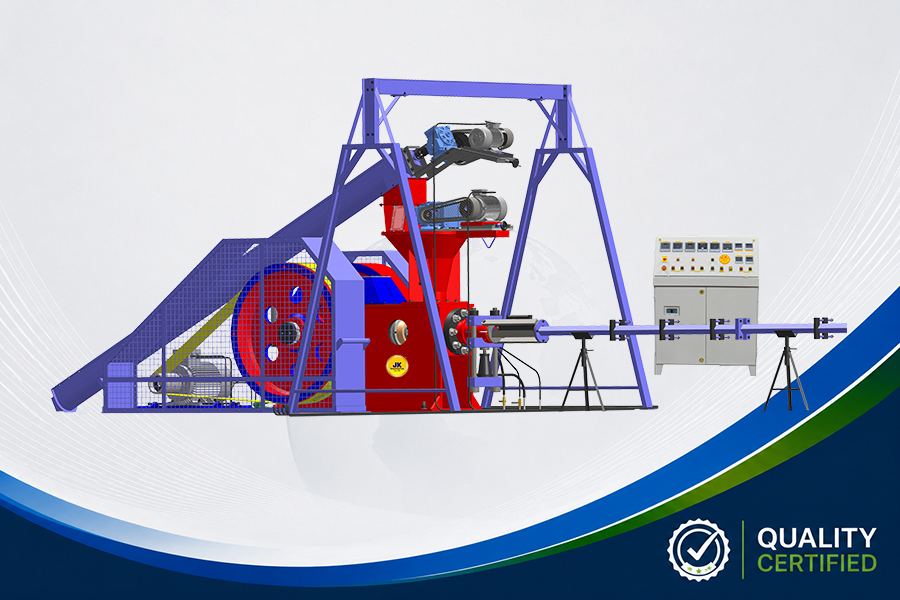

Jay Khodiyar is a leading manufacturer of Biomass Briquetting Plant in India, delivering reliable, high-performance briquetting solutions to customers worldwide. Our JK 90 Briquetting Plant efficiently converts agricultural and industrial biomass waste into high-density fuel briquettes, offering a clean, renewable, and cost-effective alternative to coal and other fossil fuels.
Engineered for maximum productivity and long service life, the press processes a wide range of biomass materials, including sawdust, rice husk, sugarcane bagasse, groundnut shells, wood waste, cotton stalks, and other agricultural residues. Using high-pressure compaction of up to 2000 kg/cm², it produces durable, high-calorific briquettes without the use of chemical binders, as the natural lignin present in the biomass acts as the binding agent.
Technical Specifications
Advantages of Briquetting Plant
The mechanical briquetting plant develops a compression force of approximately 2000 kg/cm Bar to obtain a high quality briquette of a high density and a remarkably reduced volume, without the addition of binders.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Type | Biomass Briquetting Machine |
| Briquetting Technology | High-Pressure Mechanical Piston Press |
| Briquette Diameter | 65 mm, 75 mm, 90 mm (Model Dependent) |
| Material in feed Size | 1mm x 5mm x 12mm |
| Material Moisture | 8–12% (More than 15% required Drying) |
| Briquette Length | 50mm-450mm |
| Binder Requirement | No Chemical Binder Required (Natural Lignin Acts as Binder) |
| Compression System | Mechanical Ram & Die |
| Lubrication System | Automatic / Centralized Lubrication |
| Construction | Heavy-Duty Mild Steel Fabrication |
| Drive System | Heavy-Duty Electric Motor with Flywheel |
| Feeding System | Screw Feeder with Hopper |
| Operating System | Electrical Control Panel |
| Safety Control | |
| Auto cut-off system | |
| Maintenance | Low Maintenance with Easy Access to Wear Parts |
| Operation | Continuous Industrial Operation (24×7) |
| Applications | Industrial Boilers, Furnaces, Brick Kilns, Steam Generation, Biomass Power Plants, Thermal Heating Systems |
Raw Materials
Forest Waste: Sawdust, sander dust, wood chips, tree bark, bamboo waste, veneer waste, and other forestry residues.
Agricultural Waste: Rice husk, groundnut shells, coconut shells, cotton stalks, sugarcane trash, wheat straw, paddy straw, maize waste, corn cobs, and other crop residues.
Industrial & Municipal Waste: Paper waste, bagasse, RDF, municipal solid waste (MSW), and other combustible waste.
We offer a complete range of briquetting machines in various capacities and configurations to suit different raw materials, production requirements, and industrial applications.
How to Produce briquettes
- Raw Material Collection – Collect agricultural, forestry, and industrial biomass waste.
- Crushing – Reduce the material to the required size using chippers, shredders, or hammer mills.
- Drying – Lower the moisture content to 8–12% using flash or rotary dryers.
- Briquetting – Compress the material under high pressure to form dense briquettes using natural lignin as a binder.
- Shaping & Cooling – Shape the briquettes and cool them to enhance strength and durability.
- Packaging – Pack the finished briquettes or supply them in bulk for industrial use.
Standard Models (Typical)
| Model | Briquette Size | Power | Production Capacity* |
|---|---|---|---|
| JK-65 | 65 mm | 59 HP | 500–700 kg/hr |
| JK-75 | 75 mm | 69 HP | 700–1000 kg/hr |
| JK-90 | 90 mm | 91 HP | 1000–2,000 kg/hr |
Note: Production capacity depends on the type of biomass, bulk density, moisture content (recommended 8–12%), particle size, and machine configuration. Custom briquetting plants can be designed to meet specific production requirements.
