BiomassBriquetting Machine Manufacturer India

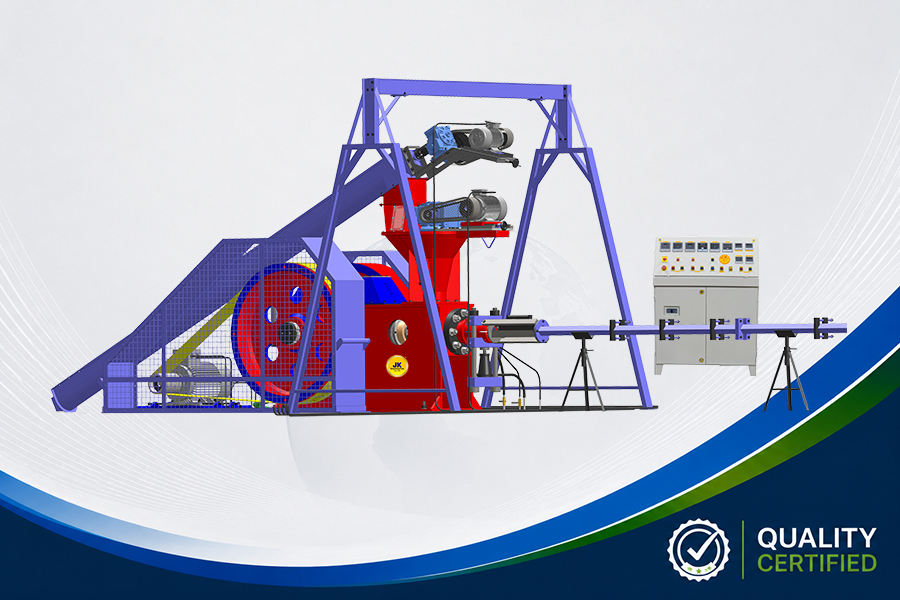

Jay Khodiyar is a leading manufacturer of biomass briquetting machines in India, offering reliable and high-performance solutions worldwide. Our JK 90 Briquetting Machine converts agricultural and industrial biomass waste into high-density fuel briquettes, providing a clean and cost-effective alternative to coal and other fossil fuels.

Designed for maximum efficiency and durability, the machine processes raw materials such as sawdust, rice husk, bagasse, groundnut shells, wood waste, cotton stalks, and other crop residues. Using high-pressure compaction of up to 2000 kg/cm², it produces high-calorific biomass briquettes without any binders or chemicals, as natural lignin acts as the binding agent.

Technical Specifications

Advantages of Briquetting Machine

The mechanical briquetting machine develops a compression force of approximately 2000 kg/cm Bar to obtain a high quality briquette of a high density and a remarkably reduced volume, without the addition of binders.

Technical Specifications

Parameter	Specification
Machine Type	Biomass Briquetting Machine
Briquetting Technology	High-Pressure Mechanical Piston Press
Briquette Diameter	65 mm, 75 mm, 90 mm (Model Dependent)
Material in feed Size	1mm x 5mm x 12mm
Material Moisture	8–12% (More than 15% required Drying)
Briquette Length	50mm-450mm
Binder Requirement	No Chemical Binder Required (Natural Lignin Acts as Binder)
Compression System	Mechanical Ram & Die
Lubrication System	Automatic / Centralized Lubrication
Construction	Heavy-Duty Mild Steel Fabrication
Drive System	Heavy-Duty Electric Motor with Flywheel
Feeding System	Screw Feeder with Hopper
Operating System	Electrical Control Panel
Safety Control	Equipped with advanced safety sensors for real-time monitoring and machine protection.
Auto cut-off system	An integrated auto cut-off system ensures instant protection against overload faults.
Maintenance	Low Maintenance with Easy Access to Wear Parts
Operation	Continuous Industrial Operation (24×7)
Applications	Industrial Boilers, Furnaces, Brick Kilns, Steam Generation, Biomass Power Plants, Thermal Heating Systems

Raw Materials

Forest Waste: Sawdust, sander dust, wood chips, tree bark, bamboo waste, veneer waste, and other forestry residues.

Agricultural Waste: Rice husk, groundnut shells, coconut shells, cotton stalks, sugarcane trash, wheat straw, paddy straw, maize waste, corn cobs, and other crop residues.

Industrial & Municipal Waste: Paper waste, bagasse, RDF, municipal solid waste (MSW), and other combustible waste.

We offer a complete range of briquetting machines in various capacities and configurations to suit different raw materials, production requirements, and industrial applications.

How to Produce briquettes

Raw Material Collection – Collect agricultural, forestry, and industrial biomass waste.
Crushing – Reduce the material to the required size using chippers, shredders, or hammer mills.
Drying – Lower the moisture content to 8–12% using flash or rotary dryers.
Briquetting – Compress the material under high pressure to form dense briquettes using natural lignin as a binder.
Shaping & Cooling – Shape the briquettes and cool them to enhance strength and durability.
Packaging – Pack the finished briquettes or supply them in bulk for industrial use.

Standard Models (Typical)

Model	Briquette Size	Power	Production Capacity*
JK-65	65 mm	59 HP	500–700 kg/hr
JK-75	75 mm	69 HP	700–1000 kg/hr
JK-90	90 mm	91 HP	1000–2,000 kg/hr

Note: Production capacity depends on the type of biomass, bulk density, moisture content (recommended 8–12%), particle size, and machine configuration. Custom briquetting plants can be designed to meet specific production requirements.
