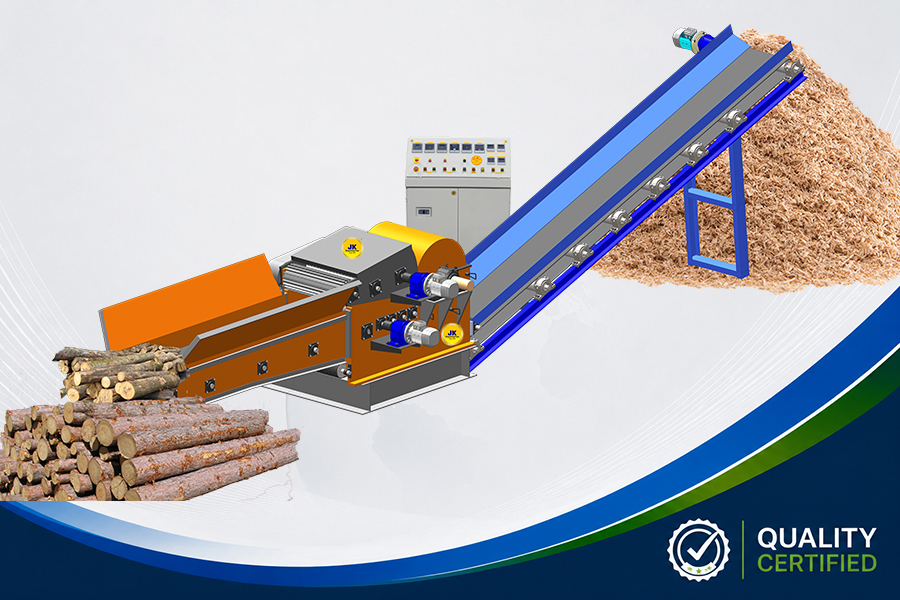

Sawdust Making Machine Manufacturers
A Sawdust Making Machine is a high-performance industrial machine designed to convert wood logs, tree branches, wood chips, sawmill waste, bamboo, veneer waste, and forestry residues into fine and uniform sawdust. The produced sawdust is widely used in biomass briquetting plants, pellet mills, particle board manufacturing, MDF board production, biomass boilers, and biomass power plants.
At Jay Khodiyar Machine Tools, our Sawdust Making Machine is engineered with a heavy-duty crushing system, high-quality wear-resistant components, and an automatic conveyor feeding system to deliver continuous operation, high productivity, and consistent output quality.
The machine is capable of handling wood materials with up to 50% moisture content, a maximum log diameter of 400 mm, and lengths ranging from 300 mm to 3000 mm. It produces uniform wood chips that are ideal for briquetting plants, pellet mills, biomass power plants, paper mills, MDF board manufacturing, and other industrial applications.
Technical Specifications
Advantages of Sawdust Machine
Built with heavy-duty components and precision engineering, our Sawdust Making Machine ensure long service life, minimal maintenance, and reliable continuous operation, making them a cost-effective solution for converting wood waste into valuable biomass fuel.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Type | Drum Type Sawdust Machine |
| Chipping Technology | High-Speed Drum with Replaceable Cutting Knives |
| Input Material | Wood Logs, Tree Branches, Tree Trunks, Timber Offcuts, Forestry Waste |
| Maximum Log Diameter | 50 to 400 mm |
| Log Length | 300–3000 mm |
| Raw Material Moisture | 25 to 50% |
| Output Material Size | Up to 15mm (Customizable) |
| Feeding System | Belt Conveyor with Hydraulic Feed Rollers |
| Cutting System | Heavy-Duty Drum with Alloy Steel Knives |
| Knife Material | Hardened High-Carbon Alloy Steel |
| Drive System | Heavy-Duty Electric Motor with Belt Drive |
| Discharge System | Belt Conveyor |
| Construction | Heavy-Duty Mild Steel Fabrication |
| Control Panel | PLC / Standard Electrical Control Panel (Optional) |
| Operation | Continuous Industrial Operation (24×7) |
| Maintenance | Easy Knife Adjustment and Replacement |
| Applications | Biomass Briquetting Plants, Pellet Plants, Biomass Power Plants, Paper & Pulp Industry, MDF & Particle Board Industry |
Working Process
1. Raw Material Feeding
Wood logs, tree trunks, branches, bamboo, timber waste, and other wood materials are loaded onto the feeding belt conveyor.
2. Automatic Feeding
Heavy-duty hydraulic or mechanical feeding rollers firmly grip the wood and feed it continuously into the cutting chamber at a controlled speed.
3. Chipping Process
Inside the machine, a high-speed rotating drum equipped with hardened alloy blades cuts the wood into uniform wood chips or wood powder. The sharp cutting blades ensure efficient processing with minimal power consumption.
4. Material Discharge
The finished wood chips or wood powder are discharged through the output conveyor for easy collection and transportation.
5. Ready for Further Processing
The processed material can be directly used in:
Key Features
- Heavy-duty drum-type cutting system
- Automatic conveyor feeding system
- Processes hardwood and softwood
- Handles wet wood with up to 50% moisture content
- Processes logs up to 400 mm diameter
- Suitable for wood lengths from 300 mm to 3000 mm
- Produces uniform wood chips
- High-capacity continuous operation
- Low maintenance and energy-efficient design
Applications
- Biomass Briquetting Plants
- Biomass Pellet Plants
- Wood Processing Industries
- Animal Feed Processing
- Biofuel Manufacturing
- Waste-to-Energy Projects
- Industrial Boilers Furnaces
- Biomass Drying Systems
- Paper and Pulp Industries
- MDF and Particle Board Manufacturing
Standard Models (Typical)
| Model | Power (HP) | Maximum Log Diameter | Capacity* |
|---|---|---|---|
| WC-30 | 30 HP | Up to 150 mm | 1–2 TPH |
| WC-50 | 50 HP | Up to 200 mm | 2–4 TPH |
| WC-75 | 75 HP | Up to 300 mm | 4–6 TPH |
| WC-100 | 100 HP | Up to 400 mm | 6–10 TPH |
Note: Machine capacity depends on the wood species (hardwood or softwood), log diameter, moisture content, knife condition, and feeding speed. Custom-built sawdust making machine with higher capacities and motor ratings are available to suit specific industrial requirements.
