Veneer Crusher Machine Manufacturer

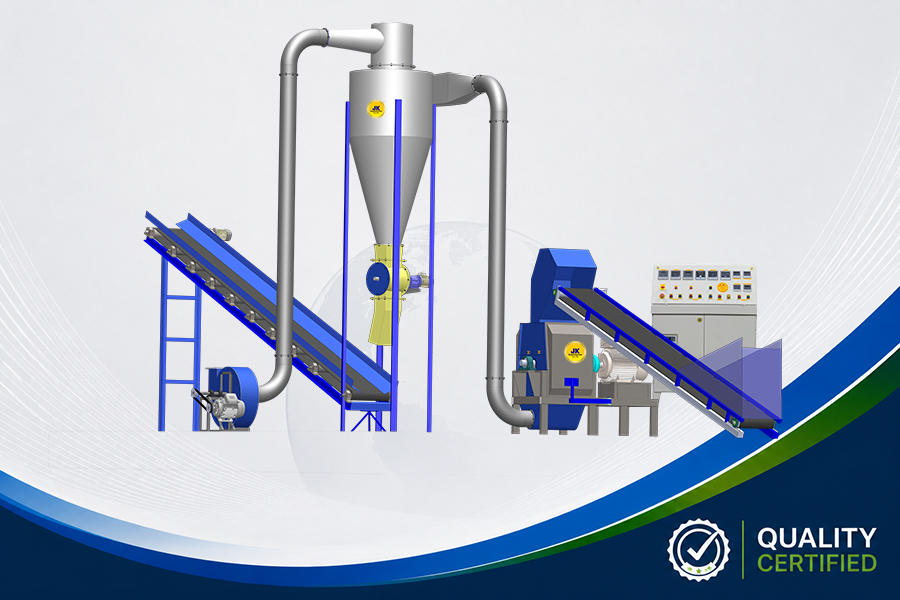

A Veneer Crusher Machine is a heavy-duty industrial machine designed to convert veneer waste, veneer sheets, and thin wood Chips into uniform wood chips. These chips are widely used as raw material for biomass briquetting, pellet manufacturing, particle board, MDF plants, paper mills, biomass boilers, and waste-to-energy applications.
At Jay Khodiyar Machine Tools, our Veneer Chipper Crusher is engineered for high productivity, precision cutting, and long-lasting performance. The machine features a robust drum-type cutting system equipped with high-quality alloy steel knives that produce consistent chip sizes while minimizing dust and material loss. It efficiently handles veneer waste up to 5 mm thickness with moisture content up to 35%, delivering uniform chips suitable for further processing.
Technical Specifications
Advantages of Veneer Crusher Machine
Designed with a conveyor-based feeding system, the Veneer Crusher machine ensures smooth, continuous operation with reduced manual handling. Its heavy-duty construction and precision-engineered components provide reliable performance even in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Type | Veneer Crusher Machine |
| Chipping Technology | High-Speed Drum Type Chipping System |
| Feeding Material Type | Veneer Waste, Veneer Sheets, Wood Chips |
| Feeding Material Size | 5mm (Thickness) x Upto 300mm (Width) Wood Chips 25mm(T) x 25(W) x 35mm(L) |
| Input (Feed) Moisture | Up to 35% |
| Output Material Size | Up to 16 mm (Customized) |
| Feeding System | Belt Conveyor with Feed Rollers |
| Cutting System | Heavy-Duty Drum with Replaceable Alloy Steel Knives |
| Knife Material | Hardened High-Carbon Alloy Steel |
| Drive System | Heavy-Duty Electric Motor with Belt Drive |
| Discharge System | Belt Conveyor |
| Construction | Heavy-Duty Mild Steel Fabrication |
| Control Panel | PLC / Standard Electrical Control Panel (Optional) |
| Operation | Continuous Industrial Operation (24×7) |
| Maintenance | Easy Knife Adjustment and Replacement |
| Applications | Biomass Briquetting Plants, Pellet Plants, Biomass Power Plants, Plywood Industry, MDF & Particle Board Manufacturing |
Working Process
-
The Veneer Crusher converts veneer waste into uniform wood chips for biomass fuel, briquetting, pelletizing, and other industrial applications.
- Material Feeding: Veneer waste is fed into the machine through a conveyor or feeding system.
- High-Speed Chipping: A heavy-duty rotating drum fitted with sharp knives cuts the veneer into uniform chips.
- Size Control: The cutting mechanism produces consistent chip sizes suitable for further processing.
- Material Discharge: The finished wood chips are discharged through the outlet or conveyor for drying, briquetting, pelletizing, or boiler fuel applications.
This process ensures high chipping efficiency, uniform chip size, low maintenance, and reliable continuous operation.
Key Features
- Heavy-duty drum-type cutting system
- Processes veneer waste up to 5 mm thickness
- Handles material with up to 35% moisture content
- Produces uniform wood chips up to 25 mm
- Conveyor feeding system for continuous operation
- High-quality alloy steel cutting knives
- Low maintenance and energy-efficient operation
- Rugged construction for long service life
Applications
- Biomass Briquetting Plants
- Biomass Pellet Plants
- Wood Processing Industries
- Agro-Waste Recycling
- Animal Feed Processing
- Biomass Power Plants
- Biofuel Manufacturing
- Waste-to-Energy Projects
Standard Models (Typical)
| Model | Power | Maximum Veneer Thickness | Capacity* |
|---|---|---|---|
| VC-30 | 30 HP | Up to 3 mm | 1–2 TPH |
| VC-50 | 50 HP | Up to 5 mm | 2–4 TPH |
| VC-75 | 75 HP | Up to 5 mm | 4–6 TPH |
| VC-100 | 100 HP | Up to 5 mm | 6–8 TPH |
Note: Production capacity depends on veneer thickness, moisture content, feed rate, knife condition, and machine configuration. Custom veneer crusher machines are available to meet specific production requirements and chip size specifications.
