Sawdust Dryer Machine Manufacturer India

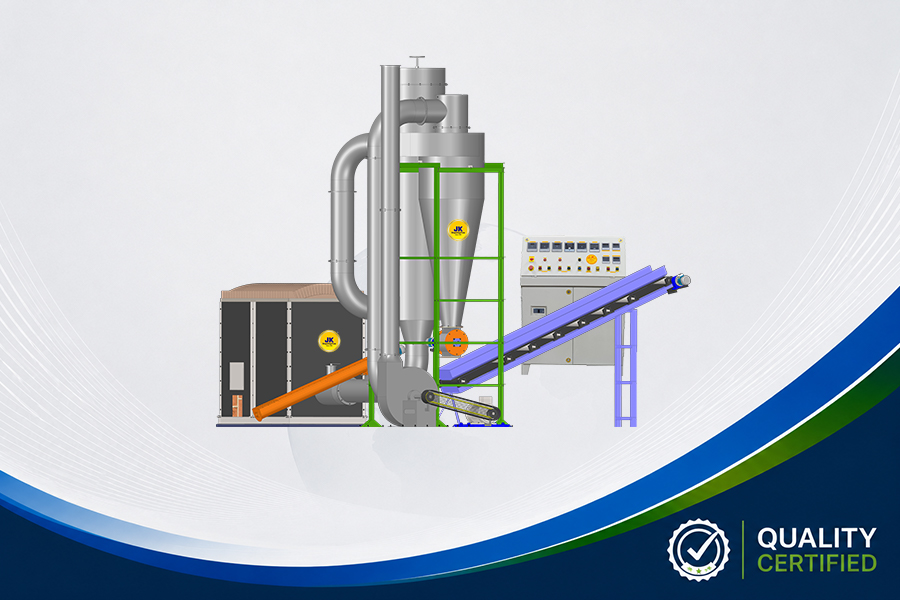

A Sawdust Dryer Machine is a high-performance industrial drying system designed to efficiently reduce the moisture content of sawdust before briquetting, pelletizing, or biomass fuel production. Using advanced Drying Technology, the machine provides fast, uniform, and energy-efficient drying, ensuring consistent moisture levels and improved product quality.
The drying process begins with a Screw Conveyor that feeds wet sawdust into a pneumatic drying pipeline. Hot air generated by a Hot Air Furnace rapidly evaporates the moisture while an ID Fan transports the material through the system. The dried sawdust is then separated and collected by a Cyclone Separator, ensuring continuous and reliable operation.
Our Sawdust Dryer Machine is capable of reducing input moisture up to 30–50% to an ideal output moisture of 8–15%, making the material suitable for briquetting machines, pellet mills, biomass boilers, biomass power plants, and other industrial heating applications.
Technical Specifications
Advantages of Sawdust Dryer Machine
The Sawdust Dryer Machine uses a Hot Air Furnace, Screw Conveyor, ID Fan, Drying Pipeline, and Cyclone Separator to reduce the moisture content of Wet biomass such as sawdust, wood granding powders, agricultural waste,. The material is conveyed into the drying pipeline, where hot air rapidly removes moisture. The dried biomass is then separated in the cyclone and discharged with the ideal moisture content, ready for briquetting, pelletizing, and other industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Type | Sawdust Dryer Machine |
| Drying Technology | Turbo Dryer (Model Dependent) |
| Drying Method | Hot Air Drying with Controlled Airflow |
| Input Raw Material | Any agriculture waste, any wood grinding powder |
| Input Material Size | Diameter up to 3 mm and length up to 10 mm |
| Suitable Moisture Content (Input) | Up to 45% (depending on raw material) |
| Output Moisture Content | 8–15% (adjustable based on application) |
| Heating Source | Biomass Furnace / Hot Air Generator |
| Feeding System | Belt Conveyor or Screw Conveyor |
| Discharge System | Cyclone Separator with Airlock / Screw Conveyor |
| Airflow System | High-Efficiency Centrifugal Blower |
| Fuel Type | Biomass Briquettes, Wood Waste, Wood Logs, or Other Biomass Fuels |
| Construction | Heavy-Duty Mild Steel Fabrication |
| Insulation | High-Temperature Thermal Insulation |
| Control Panel | PLC / Standard Electrical Control Panel (Optional) |
| Operation | Continuous Industrial Operation (24×7) |
| Maintenance | Low Maintenance with Easy Access to Components |
| Applications | Briquetting Plants, Pellet Plants, Biomass Power Plants, Industrial Fuel Preparation |
Raw Materials
At Jay Khodiyar Machine Tools, the Biomass Drying System uses a screw conveyor, pneumatic conveying line, Hot Air Furnace, and cyclone separator to ensure fast, uniform, and energy-efficient drying. It is suitable for processing sawdust, wood chips, wood powder, rice husk, bagasse, bamboo dust, groundnut shells, cotton stalks, agricultural waste, forestry waste, municipal solid waste, and other biomass materials.
Dryer Working Process
- Raw Material Feeding: Wet biomass is fed into the dryer through a feeding hopper or screw conveyor.
- Material Conveying: The screw conveyor continuously transfers the material into the drying chamber.
- Hot Air Drying: A hot air furnace generates high-temperature air, which rapidly removes moisture from the biomass.
- Cyclone Separation: The dried biomass is separated from the hot air and collected for further processing.
- Dust Collection: Fine dust is captured by the air pollution control system before clean air is released.
- Ready for Production: The dried biomass is ready for briquetting, pelletizing, biomass boilers, and other industrial applications.
This process ensures fast, uniform, and energy-efficient drying, delivering biomass with the ideal moisture content for high-performance fuel production.
Standard Models (Typical)
| Model | Power | Capacity | Input Moisture | Output Moisture |
|---|---|---|---|---|
| JK-BD-2000 | 61 HP | 2 TPH | Up to 40% | 8–15% |
| JK-BD-3000 | 73 HP | 3 TPH | Up to 40% | 8–15% |
| JK-BD-5000 | 90 HP | 4 TPH | Up to 40% | 8–15% |
Note: Drying capacity depends on the raw material type, initial moisture content, particle size, ambient conditions, heating source, and dryer configuration. Custom Sawdust Dryer Machine are available to meet specific production capacities and process requirements.
